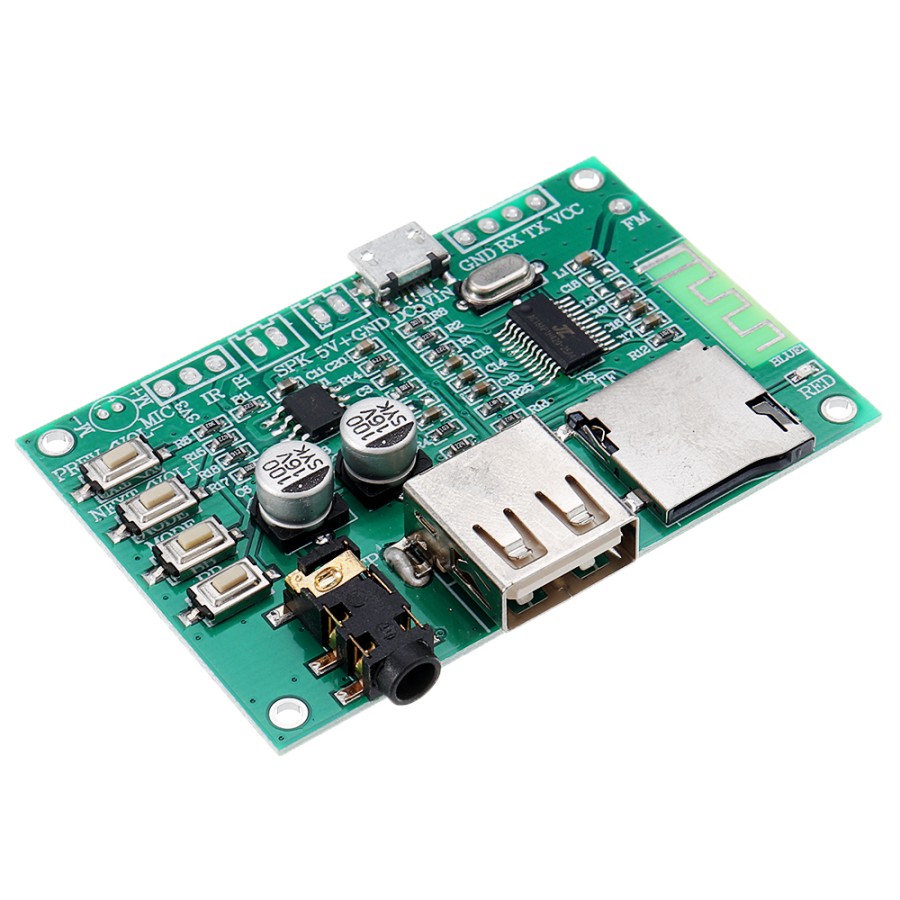

BT201 Dual Mode 5.0 Bluetooth decoder serial audio MP3 Player board

BT201 5.0 Bluetooth module is a 4-in-1 single chip that supports bluetooth, usb
flash drive and TF card. The highlight of the chip is that it supports lossless
music playback, simple and clear serial port control function, BLE pass-through
function and SPP pass-through function.It greatly reduces the development
difficulty of embedded bluetooth in other products

Function introduction

1. Support bluetooth audio, BLE data transmission, U disk playback, TF card
playback, SPIFLASH.攴 hold MP3, WAV, FLAC, APE format decoding

2. Serial port AT command control.Support to modify baud rate to modify
bluetooth name, specify device playback, and cell phone data passthrough

3, support BLE and SPP dual-mode data transmission, at the same time can play
bluetooth audio, no conflict

4, support bluetooth call, multi-button control, last music, next music, play
pause, tuning volume and other simple functions

5, support to get the full file name of play serial port specified path play,
loop or single play

6. Support 128KBS recording function.Recording to TF card or U disk, recording
delete playback and so on

7, rich use information, reference PCB, use video tutorial, mobile phone
passthrough video tutorial, serial port AT video tutorial

8. Super simple peripheral,5 capacitors can be completed

9, easy docking already existing APP, or develop WeChat applet.Mobile phone
control

10. We have made the functional firmware ourselves, which is very flexible. Even
if there is a need that cannot be met, we can communicate and develop it

Functional description(Support AT serial command control)

1,16 bit Stereo dac with headphone amplifier, SNR > = 95 db

2, no crystal vibration load capacitor, the chip automatically generates
bluetooth MAC address, no rolling burning

Music features:

1, support MP3, WAV, WMA, FLAC, AAC, APE format decoding

2. The maximum support is 128G usb flash drive and TF card, supporting
breakpoint memory and track memory functions
